Product Summary
The 1N6480-E375 is a surface mount glass passivated junction rectifier.
Parametrics
1N6480-E375 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage, VRRM: 400 Volts; (2)Maximum RMS voltage VRMS: 280 Volts; (3)Maximum DC blocking voltage, VDC: 400Volts; (4)Maximum average forward rectified current at I(AV): 1.0 Amp; (5)Peak forward surge current, IFSM: 30.0 Amps; (6)Maximum instantaneous forward voltage at 1.0A, VF: 1.1 Volts at TA=25℃; 1.0 Volts at TA=75℃; (7)Maximum DC reverse current at rated DC blocking voltage: 10.0μA at TA=25℃; 200μA at TA=125℃; (8)Maximum full load reverse current, full cycle average at TA=75℃, IR(AV): 100.0 μA; (9)Typical junction capacitance, CJ: 8.0 pF; (10)Maximum thermal resistance: RQJA: 50.0 ℃/W; RQJT, 20.0: ℃/W; (11)Operating junction and storage temperature range, TJ, TSTG: -65 to +175 ℃.
Features
1N6480-E375 features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)For surface mount applications; (3)High temperature metallurgically bonded construction; (4)Glass passivated cavity-free junction; (5)Capable of meeting environmental standards of MIL-S-19500; (6)High temperature soldering guaranteed: 450℃/5 seconds at terminals.

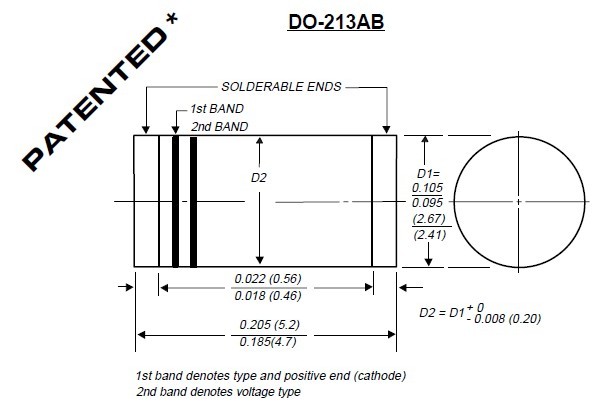

Diagrams
 |
