Product Summary
The 1PMT5920BT1G is the new line of 3.2 Watt Zener Diode which is offered in highly efficient micro miniature, space saving surface mount with its unique heat sink design. The POWERMITE package has the same thermal performance as the SMA while being 50% smaller in footprint area and delivering one of the lowest height profiles(1.1 mm) in the industry. Because of its small size, the 1PMT5920BT1G is ideal for use in cellular phones, portable devices, business machines and many other industrial/consumer applications.
Parametrics
1PMT5920BT1G absolute maximum ratings: (1)DC Power Dissipation @ TA = 25℃ (Note 1): 500 mW; (2)DC Power Dissipation Derate above 25℃: 4.0 mW/℃; (3)Thermal Resistance, Junction-to-Ambient: 248 ℃/W; (4)Thermal Resistance, Junction-to-Lead (Anode): 35 ℃/W; (5)Maximum DC Power Dissipation (Note 2): 3.2 W; (6)Thermal Resistance from Junction-to-Tab (Cathode): 23℃/W; (7)Operating and Storage Temperature Range: -55 to +150℃.
Features
1PMT5920BT1G features: (1)Zener Breakdown Voltage: 6.2 to 47 V; (2)DC Power Dissipation: 3.2 W with Tab 1 (Cathode) @ 75℃; (3)Low Leakage < 5μA; (4)ESD Rating of Class 3 (> 16 kV) per Human Body Model; (5)Low Profile- Maximum Height of 1.1 mm; (6)Integral Heat Sink/Locking Tabs; (7)Full Metallic Bottom Eliminates Flux Entrapment; (8)Small Footprint - Footprint Area of 8.45 mm2; (9)Supplied in 12 mm Tape and Reel, T1 = 3,000 Units per Reel; T3 = 12,000 Units per Reel; (10)Lead Orientation in Tape: Cathode (Short) Lead to Sprocket Holes; (11)POWERMITE is JEDEC Registered as DO-216AA; (12)Cathode Indicated by Polarity Band; (13)Pb-Free Packages are Available.

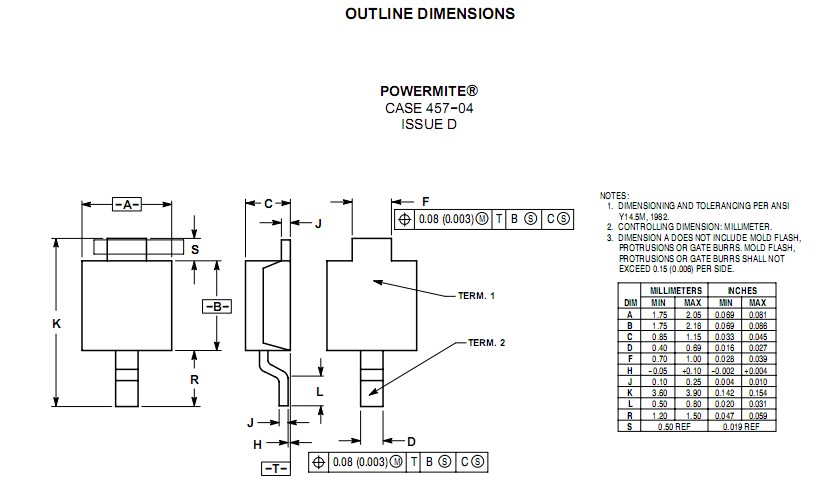

Diagrams
