Product Summary
The AXK6F00347YG is the Narrow pitch connector(0.5mm pitch).
Parametrics
AXK6F00347YG absolute maximum ratings: (1)Rated current: 0.5A/contact (Max. 10 A at total contacts); (2)Rated voltage: 60V AC/DC; (3)Breakdown voltage: 150V AC for 1 minute; (4)Insulation resistance: Min. 1,000MΩ (initial); (5)Contact resistance: Max. 90mΩ; (6)Ambient temperature:–55 to +85℃; (7)Storage temperature: –55 to +85℃ (product only), –40 to +50℃ (emboss packing).
Features
AXK6F00347YG features: (1)Two-piece structure and 0.5mm pitch; (2)Strong resistance to adverse environments; (3)Simple locking structure Superior mating operation with click feel to indicate that mating is complete; (4)Mating length 0.55mm; (5)The lower connector bottom surface construction prevents contact and shorts between the PCB and metal terminals; (6)Automatic mounting inspection is facilitated by the gull-wing terminal shape which makes mounting verification easy; (7)Connectors for inspection available.

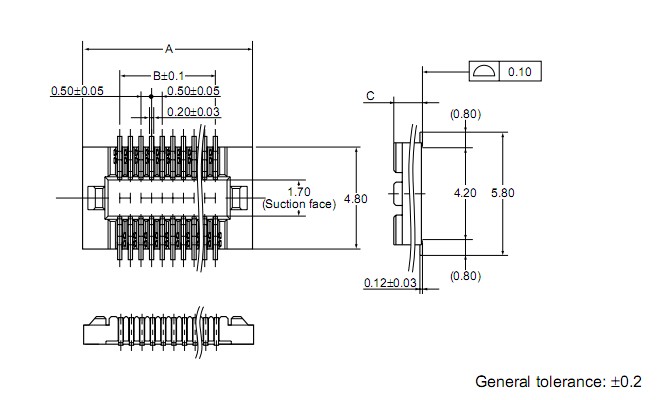

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

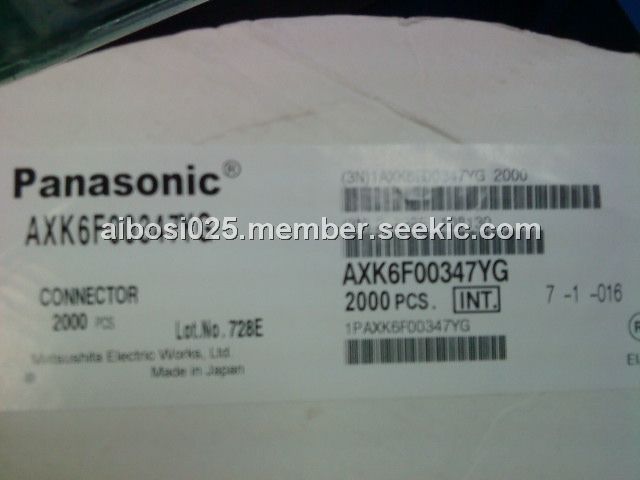

 AXK6F00347YG |
Panasonic Electric Works |
Board to Board / Mezzanine Connectors CONN HEADER BRD/BRD 100 POS 0.5mm |
Data Sheet |
|
|
||||||||||||
