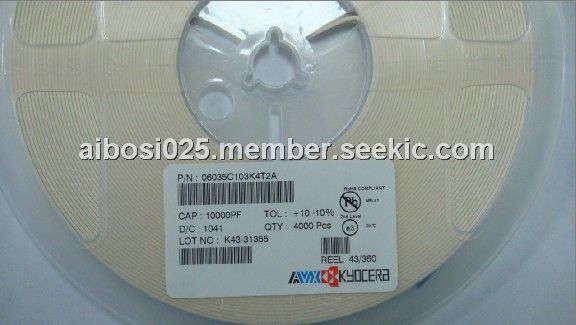

06035C103K4T2A

Cap Ceramic, C0G (NP0) Dielectric, SMD, 1.60 ± 0.15 (0.063 ± 0.006) mm, 10000 pF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: 06035C103K4T2A

Brand:: AVX Corporation - AVX | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Mable's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:06035C103K4T2A
US $0.10 - 100.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 06035C103K4T2A is a capacitor of C0G (NP0) dielectric. C0G (NP0) is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. The 06035C103K4T2A contain neodymium, samarium and other rare earth oxides. C0G (NP0) ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0 ±30ppm/℃ which is less than ±0.3%℃ from -55℃ to +125℃. Capacitance drift or hysteresis for C0G (NP0) ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G (NP0), one-fifth that shown by most other dielectrics. C0G (NP0) formulations show no aging characteristics.

Parametrics

06035C103K4T2A absolute maximum ratings: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance Within specified tolerance, Q <30 pF: Q≥ 400+20 x Cap Value; (3)Capacitance Within specified tolerance, ≥30 pF: Q≥ 1000; (4)Insulation Resistance: 100,000MΩ or 1000MΩ - μF, whichever is less.

Features

06035C103K4T2A features: (1)(L) Length mm (in.): 1.60 ± 0.15 (0.063 ± 0.006); (2)(W) Width mm (in.): 0.81 ± 0.15 (0.032 ± 0.006); (3)(t) Terminal mm (in.): 0.35 ± 0.15 (0.014 ± 0.006); (4)Dielectric Strength: No breakdown or visual defects.
