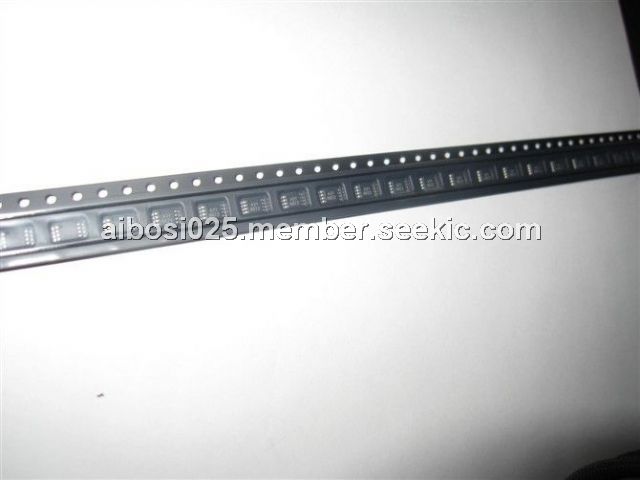

Product Summary
The ADS8321EB is a 16-bit sampling analog-to-digital converter with guaranteed specifications over a 4.75V to 5.25V supply range. It requires very little power even when operating at the full 100kHz data rate. At lower data rates, the high speed of the device enables it to spend most of its time in the power-down mode —the average power dissipation is less than 1mW at 10kHz data rate. The ADS8321EB also features a synchronous serial (SPI/SSI compatible) interface, and a differential input. The reference voltage can be set to any level within the range of 500mV to 2.5V.
Parametrics
ADS8321EB absolute maximum ratings: (1)VCC: +6V; (2)Analog Input: –0.3V to (VCC + 0.3V); (3)Logic Input: –0.3V to 6V; (4)Case Temperature: +100℃; (5)Junction Temperature: +150℃; (6)Storage Temperature: +125℃; (7)External Reference Voltage: +5.5V.
Features
ADS8321EB features: (1)Bipolar input range; (2)100KHz sampling rate; (3)Micro power: 4.5mW at 100 KHz, 1mW at10 KHz; (4)Power down: 3μA max; (5)8-lead MSOP package; (6)Pin-compatible to ADS7816 and ADS7822; (7)Serial (SPI/SSI) interface.

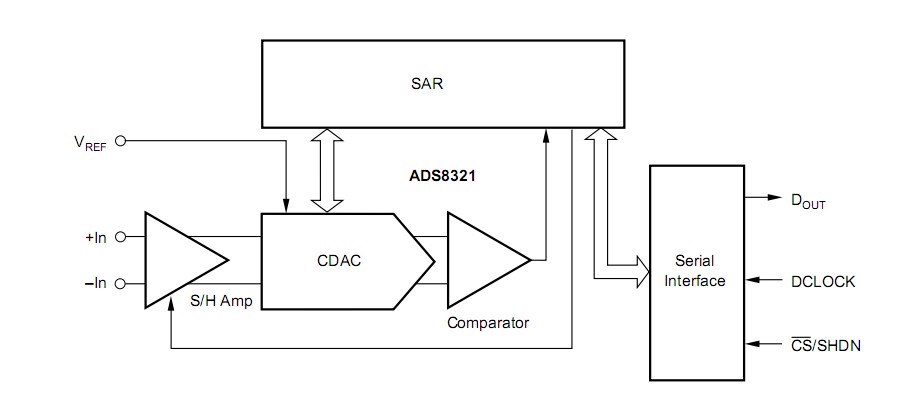

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADS8321EB/250 |
Texas Instruments |
ADC (A/D Converters) 12bit 200KHz Unipol |
Data Sheet |
|
|
|||||||||||||
ADS8321EB/250G4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit High Speed MicroPower Sampling |
Data Sheet |
|
|
|||||||||||||
ADS8321EB/2K5 |
Texas Instruments |
ADC (A/D Converters) 16-Bit High Speed MicroPower Sampling |
Data Sheet |
|
|
|||||||||||||
ADS8321EB/2K5G4 |
Texas Instruments |
ADC (A/D Converters) 16-Bit High Speed MicroPower Sampling |
Data Sheet |
|
|
