Product Summary

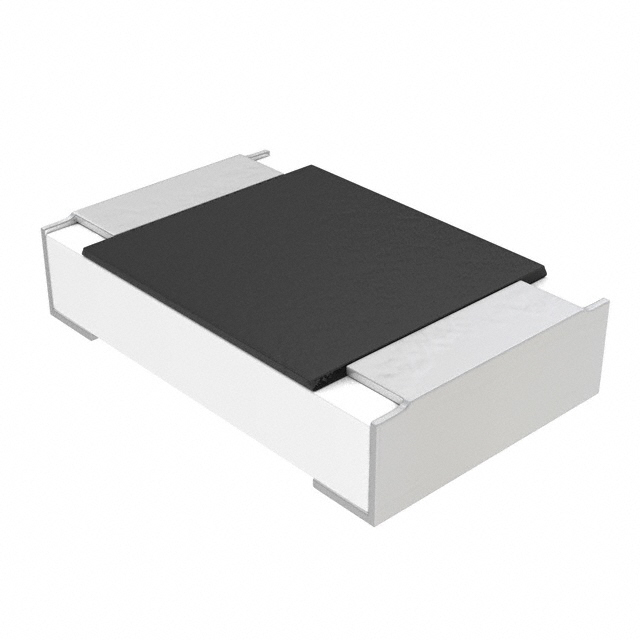

The MCU08050D1002BP500 is a precision thin film chip resistor. Thin Film Flat Chip Resistor MCU08050D1002BP500 combines the proven reliability of the professional products with an advanced level of precision and stability. Therefore the MCU08050D1002BP500 is perfectly suited for applications in the fields of test and measuring equipment together with industrial and medical electronics.

Parametrics

MCU08050D1002BP500 absolute maximum ratings: (1)Resistance range: 39 Ω to 1.5 MΩ; (2)Resistance tolerance: ± 0.25 %; ± 0.1 %; (3)Temperature coefficient: ± 25 ppm/K; ± 15 ppm/K; ± 10 ppm/K; (4)Specified lifetime: 225 000 h; (5)Failure rate: FITobserved ≤ 0.1 x 10-9/h.

Features

MCU08050D1002BP500 features: (1)Approved according to EN 140401-801; (2)Low TCR: 10 ppm/K to 25 ppm/K; (3)Precision tolerance of value: 0.1 % and 0.25 %; (4)Superior overall stability: Class 0.1 and 0.25; (5)Lead (Pb)-free solder contacts; (6)Compliant to RoHS directive 2002/95/EC.

Diagrams

MCU08050D1002BP500 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

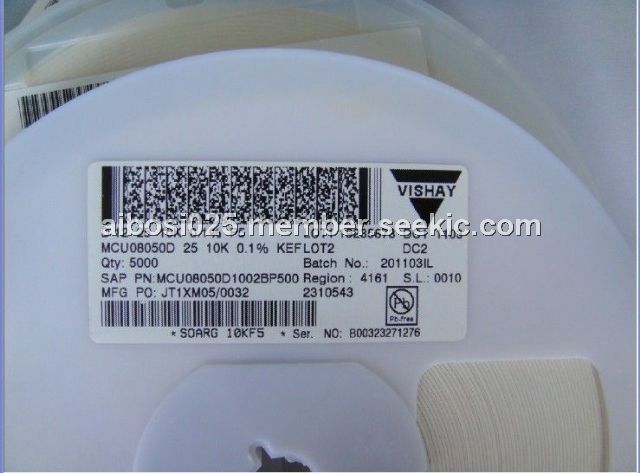

MCU08050D1002BP500
MCU08050D1002BP500

RES 10K OHM 1/8W .1% SMD 0805
Data Sheet
0-5000: $0.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MCU08050C1000FP500
MCU08050C1000FP500

RES 100 OHM 1/8W 1% SMD 0805
Data Sheet
0-1: $0.17
1-10: $0.14
10-50: $0.10
50-100: $0.08
100-500: $0.07
500-1000: $0.05
MCU08050C1001FP500
MCU08050C1001FP500

RES 1.00K OHM 1/8W 1% SMD 0805
Data Sheet
0-1: $0.17
1-10: $0.14
10-50: $0.10
50-100: $0.08
100-500: $0.07
500-1000: $0.05
MCU08050C2703FP500
MCU08050C2703FP500

RES 270K OHM 1/8W 1% SMD 0805
Data Sheet
0-5000: $0.03
MCU08050C2704FP500
MCU08050C2704FP500

RES 2.7M OHM 1/8W 1% SMD 0805
Data Sheet
0-5000: $0.03
MCU08050C2709FP500
MCU08050C2709FP500

RES 27 OHM 1/8W 1% SMD 0805
Data Sheet
0-5000: $0.04
MCU08050C3000FP500
MCU08050C3000FP500

RES 300 OHM 1/8W 1% SMD 0805
Data Sheet
0-5000: $0.03
