BTS7810K

TO-263-15, TrilithIC family, high-side switch, Small outline, 40 V, Internal clamp diodes

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: BTS7810K

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Mable's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:BTS7810K
US $0.10 - 100.00
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

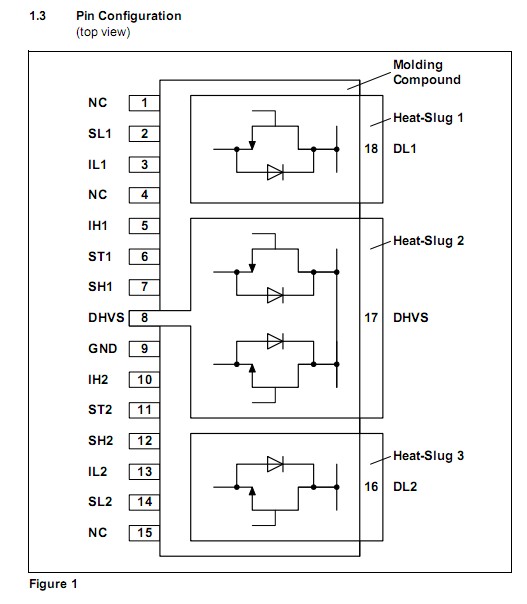

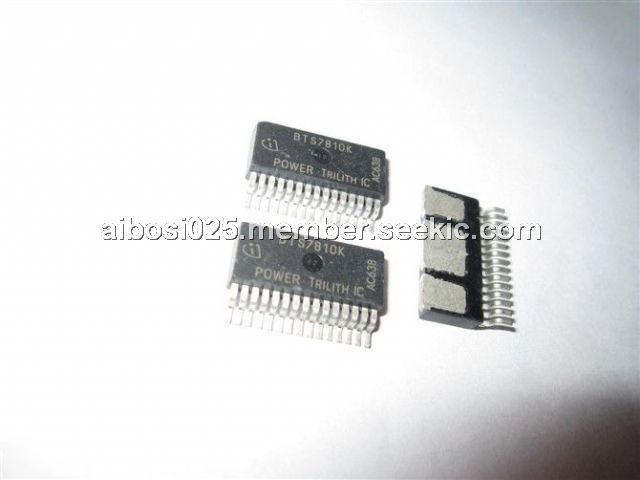

The BTS7810K is part of the TrilithIC family containing three dies in one package: One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated leadframes. The sources are connected to individual pins, so the BTS7810 K can be used in H-bridge- as well as in any other configuration.
