Product Summary

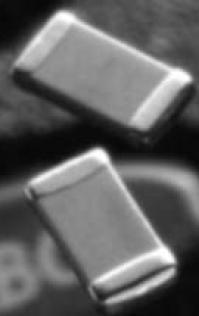

The capacitor CC1206KKX7RDBB102 consists of a rectangular block of ceramic dielectric in which a number of interleaved metal electrodes are contained. This structure gives rise to a high capacitance per unit volume. The inner electrodes of the CC1206KKX7RDBB102 are connected to the two end terminations and finally covered with a layer of plated tin(NiSn). The terminations are lead-free. The applications of the CC1206KKX7RDBB102 include (1)PCs, hard disk, game PCs; (2)Power supplies; (3)LCD panel; (4)ADSL, modem.

Parametrics

CC1206KKX7RDBB102 specifications: (1)Dielectric Characteristic: X7R; (2)Capacitance: 1000pF; (3)Capacitance Tolerance: ± 10%; (4)Voltage Rating: 2kV; (5)Capacitor Case Style: 1206; (6)Capacitor Mounting: SMD; (7)Operating Temperature Range: -55℃ to +125℃; (8)SVHC: No SVHC (20-Jun-2011); (9)External Depth: 1.6mm; (10)External Length / Height: 1.25mm; (11)External Width: 3.2mm.

Features

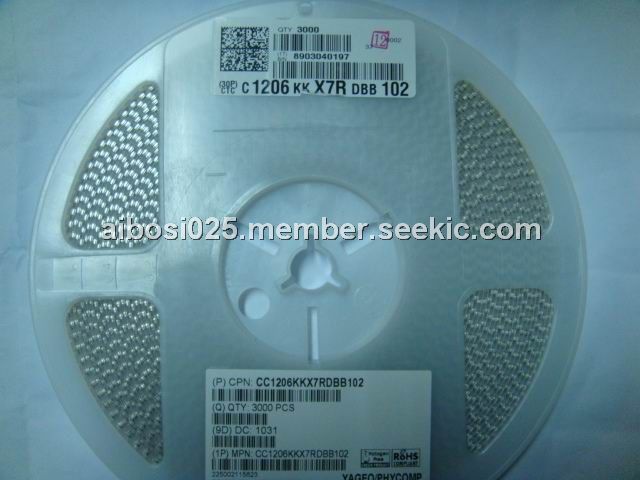

CC1206KKX7RDBB102 features: (1)Supplied in tape on reel; (2)Nickel-barrier end termination.

Diagrams

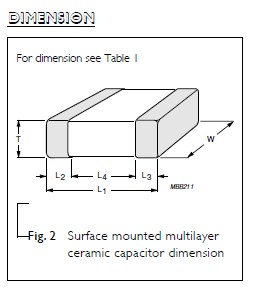

CC1206KKX7RDBB102 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CC1206KKX7RDBB102
CC1206KKX7RDBB102

Yageo

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1.0nF 2KV X7R 10%

Data Sheet

0-3000: $0.04
3000-12000: $0.04
12000-27000: $0.04
27000-51000: $0.03
