Product Summary
The VJ1206Y103JXBAT is a surface mount multilayer ceramic chip capacitor solution for boardflex sensitive applications.
Parametrics
VJ1206Y103JXBAT electrical specifications: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 100 pF to 1.8 μF; (3)Voltage Rating: 16 Vdc to 3000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): X7R: ± 15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (5)Dissipation Factor: 6.3 V, 10 V ratings: 5 % max. at 1.0 Vrms and 1 kHz; 16 V, 25 V ratings: 3.5 % max. at 1.0 Vrms and 1 kHz; s 50 V ratings: 2.5 % max. at 1.0 Vrms and 1 kHz; (6)Aging Rate: 1 % maximum per decade; (7)Insulation Resistance (IR): At + 25 ℃ and rated voltage 100 000 MW minimum or 1000 WF, whichever is less; At + 125 ℃ and rated voltage 10 000 MW minimum or 100 WF, whichever is less; (8)Dielectric Withstanding Voltage (DWV): ≤ 250 Vdc: DWV at 250 % of rated voltage; 500 Vdc: DWV at 200 % of rated voltage; 630 Vdc: DWV at 150 % of rated voltage; 1000 Vdc: DWV at 150 % of rated voltage; 1500 Vdc: DWV at 120 % of rated voltage; 2000 Vdc: DWV at 120 % of rated voltage; 3000 Vdc: DWV at 120 % of rated voltage.
Features
VJ1206Y103JXBAT features: (1)Surface mountable, precious metal technology, wet build process; (2)OMD-Cap (Open Mode Design) reduce the risk of short or low IR because of board flex cracks; (3)Efficient low-power consumption, ripple current capaple to 1.2 Arms at 100 kHz; (4)High Voltage breakdown compared to standard design; (5)Available with 100 % voltage condition, process code “5H”; (6)Excellent reliability and thermal shock performance; (7)Available with polymer termination for increase resistance to board flex cracking; (8)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.

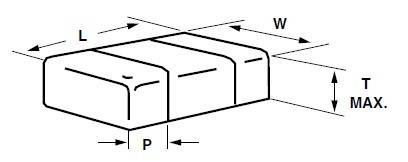

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VJ1206Y103JXBAT |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1206 0.01uF 100volts X7R 5% |
Data Sheet |
|
|
||||||||||||
