Product Summary
The CYP15G0201DXB-BBXC is the dual-channel HOTLink II transceiver which is a point-to-point or point-to-multipoint communications building block allowing the transfer of data over high-speed serial links (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195- to 1500-MBaud per serial link. The CYP15G0201DXB-BBXC satisfies the SMPTE 259M and SMPTE 292M compliance as per the EG34-1999 Pathological Test Requirements.
Parametrics
CYP15G0201DXB-BBXC absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Supply Voltage to Ground Potential: –0.5V to +3.8V; (4)DC Voltage Applied to LVTTL Outputs in High-Z State:–0.5V to VCC +0.5V; (5)Output Current into LVTTL Outputs (LOW): 60 mA; (6)DC Input Voltage: –0.5V to VCC +0.5V; (7)Static Discharge Voltage: > 2000 V (per MIL-STD-883, Method 3015); (8)Latch-up Current: > 200 mA.
Features
CYP15G0201DXB-BBXC features: (1)Second-generation HOTLink technology; (2)Compliant to multiple standards; (3)Dual channel transceiver operates from 195 to 1500 MBaud serial data rate; (4)Selectable parity check/generate; (5)Selectable dual-channel bonding option; (6)Skew alignment support for multiple bytes of offset; (7)Selectable input/output clocking options; (8)Synchronous LVTTL parallel interface; (9)Internal phase-locked loops (PLLs) with no external PLL components; (10)Optional Phase-Align Buffer in transmit path; (11)Optional Elasticity Buffer in receive path; (12)Dual differential PECL-compatible serial inputs per channel; (13)Single 3.3V supply ; (14)196-ball BGA; (15)Pb-Free package option available.

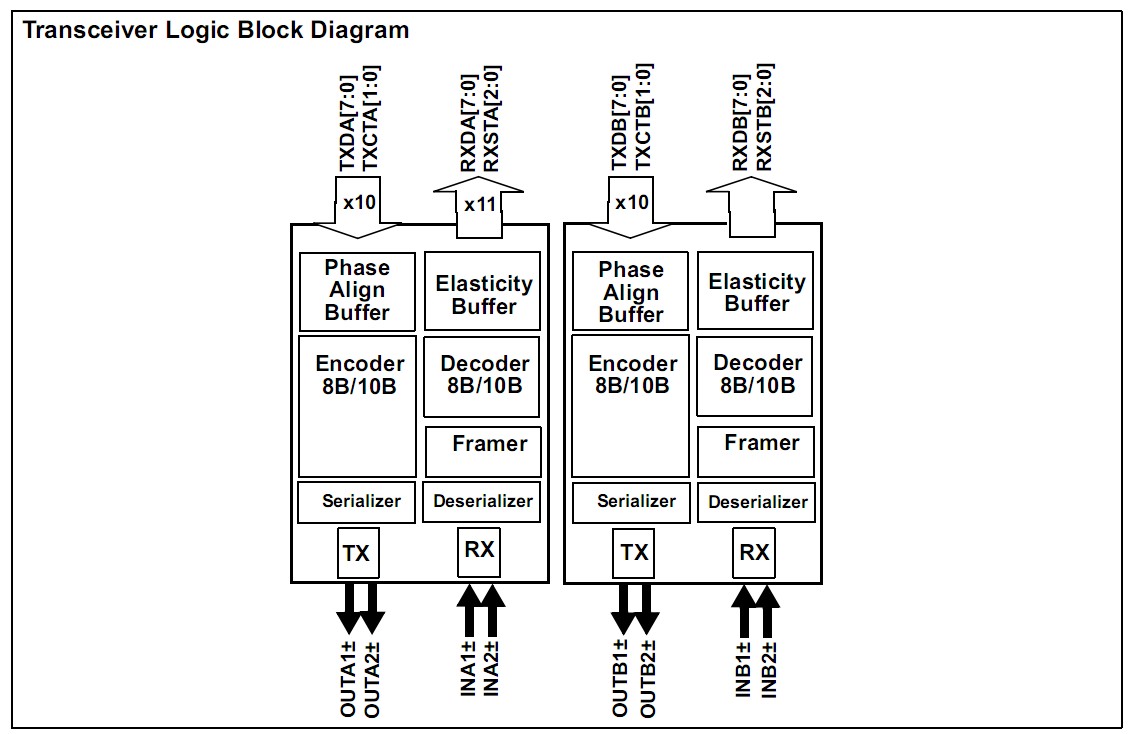

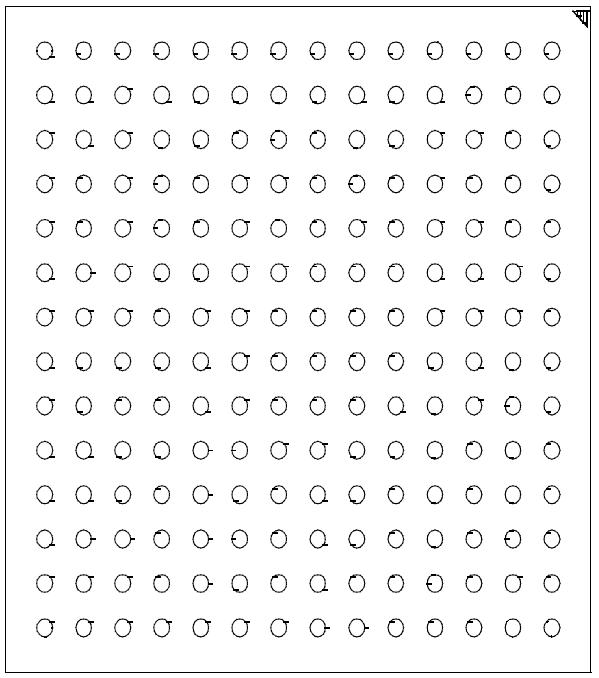

Diagrams

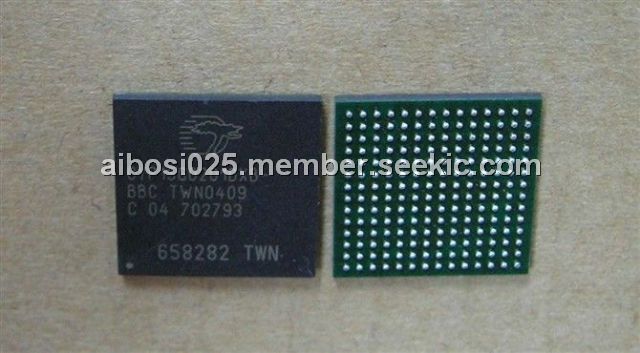

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CYP15G0201DXB-BBXC |
Cypress Semiconductor |
Telecom Line Management ICs Dual Channel XCVR 1.5Gbps Bckplane COM |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
CYP15G0101DXA-BBC |
Cypress Semiconductor Corp |
100BGA 1.5G BPS TRANSCEIVER COMM |
Data Sheet |
Negotiable |
|
||||||||||||
|
CYP15G0101DXB |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
CYP15G0101DXB-BBC |
Cypress Semiconductor |
Telecom Line Management ICs Single Channel XCVR 1.5Gbps Bckplane COM |
Data Sheet |
Negotiable |
|
||||||||||||
|
CYP15G0101DXB-BBI |
Cypress Semiconductor |
Telecom Line Management ICs Single Channel XCVR 1.5Gbps Bckplane IND |
Data Sheet |
Negotiable |
|
||||||||||||
|
CYP15G0101DXB-BBXC |
Cypress Semiconductor |
Telecom Line Management ICs Single Channel XCVR 1.5Gbps Bckplane COM |
Data Sheet |
|
|
||||||||||||
|
CYP15G0101DXB-BBXI |
Cypress Semiconductor |
Telecom Line Management ICs Single Channel XCVR 1.5Gbps Bckplane IND |
Data Sheet |
|
|
||||||||||||
