Product Summary

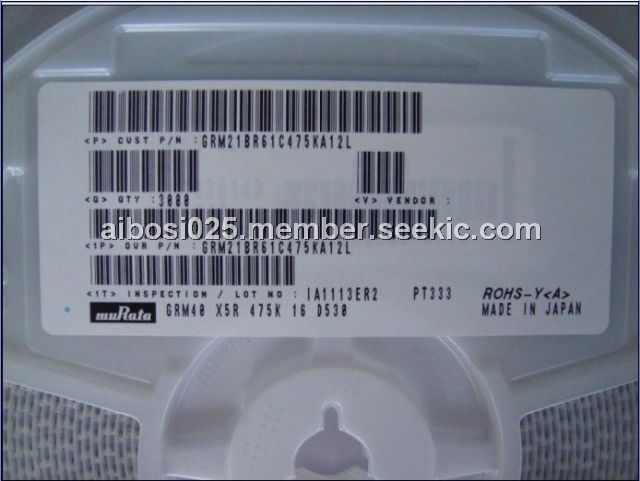

The GRM21BR61C475KA12L is a chip monolithic ceramic capacitor. The GRM21BR61C475KA12L is ideal for use on high frequency pulse circuits such as snubber circuits for switching power supplies, DC-DC converters, ballasts (inverter fluorescent lamps), etc.

Parametrics

GRM21BR61C475KA12L absolute maximum ratings: (1)Operating Temperature Range: –55 to +125℃; (2)Insulation Resistance: CU0.01μF: More than 100M??μF; (3)(I.R.)CF0.01μF: More than 10,000M; (4)Capacitance: Within the specified tolerance; (5)Capacitance Temperature Characteristics: Cap. Change Within ±15%(Temp. Range: –55 to +125℃).

Features

GRM21BR61C475KA12L features: (1)Low-loss and suitable for high frequency circuits; (2)Muratas original internal electrode structure provides high flash-over voltage; (3)A new monolithic structure for small, surfacemountable devices capable of operating at high voltage levels; (4)Sn-plated external electrodes provides good solderability; (5)Use the GRM21/31 type with flow or reflow soldering, and other types with reflow soldering only.

Diagrams

GRM21BR61C475KA12L dimension

GRM2.1160.013
