Product Summary

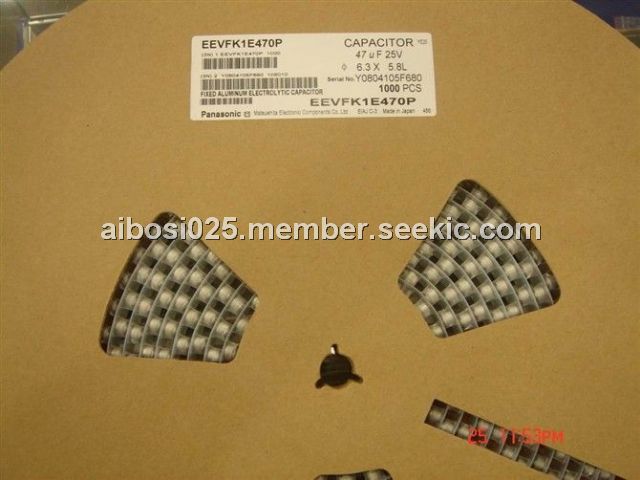

The EEVFK1E470P is an aluminum electrolytic capacitor.

Parametrics

EEVFK1E470P specifications: (1)Category temp, range: -55 to +105℃; (2)Rated W.v.Range: 6.3 to 100V.DC; (3)Nominal Cap. Range: 3.3 to 6800uF; (4)Capacitance Tolerance: ± 20%(120HZ/+20℃); (5)DC leakage Current: I ≤0.01CV or 3(uA) After 2 mimutes application of rated working voltage at -20℃. (Whenever is greater).

Features

EEVFK1E470P features: (1)Enourance: 20CO to 5000h at105℃; (2)Low impedance (40 to 60% less nan FCseries) ; (3)Miniaturizai]on(30 to 50% less than FC series); (4)Vibration-proof product is available upon request. (Φ8≤); (5)RoHS difectrve compliant(Parts No:EEV+ Φ12-5 ≤.EEE+).

Diagrams

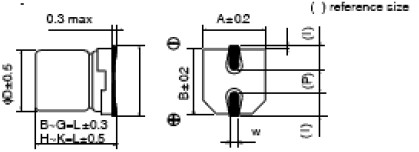

EEVFK1E470P dimension

EEVFK1C681P
EEVFK1C681P
Other

Data Sheet
Negotiable
