Product Summary
The ATTINY2313V-10 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY2313V-10S achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATTINY2313V-10 absolute maximum ratings: (1)Operating Voltages: 1.8 - 5.5V (ATtiny2313V); 2.7 - 5.5V(ATtiny2313); (2)Speed Grades: ATtiny2313V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V; ATtiny2313: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V; (3)Typical Power Consumption- Active Mode: 1 MHz, 1.8V: 230μA; 32 kHz, 1.8V: 20μA (including oscillator); Power-down Mode: < 0.1 μA at 1.8V.
Features
ATTINY2313V-10 features: (1)Utilizes the AVRRISC Architecture; (2)AVR High-performance and Low-power RISC Architecture; (3)Data and Non-volatile Program and Data Memories; (4)Peripheral Features; (5)Special Microcontroller Features; (6)I/O and Packages; (7)Operating Voltages; (8)Speed Grades; (9)Typical Power Consumption.

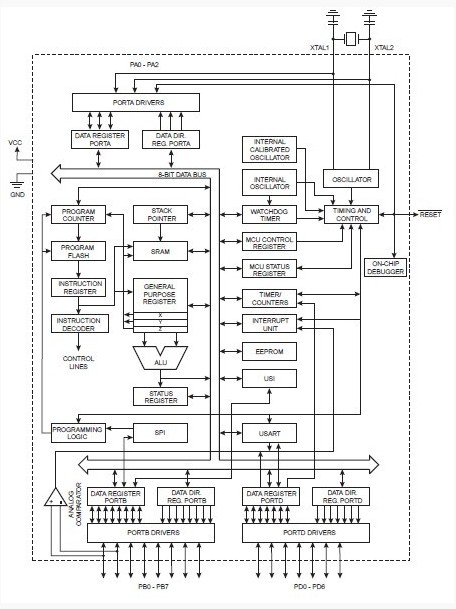

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATtiny2313V-10MI |
Atmel |
8-bit Microcontrollers (MCU) AVR 2K FLSH 128B EE 128B SRAM 1 UART |
Data Sheet |
Negotiable |
|
||||||||||||
|
ATtiny2313V-10MU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATtiny2313V-10PU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATTINY2313V-10MUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 2KFL 128B EE1.8V 128B 1UART 20P-10MHz |
Data Sheet |
|
|
||||||||||||
|
ATtiny2313V-10PI |
Atmel |
8-bit Microcontrollers (MCU) AVR 2K FLSH 128B EE 128B SRAM 1 UART |
Data Sheet |
Negotiable |
|
||||||||||||
 |
ATTINY2313V-10PJ |
|
IC MCU AVR 2K FLASH 20DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
ATtiny2313V-10SU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATTINY2313V-10SUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 2KFL 128B EE1.8V 128B 1UART 20P-10MHz |
Data Sheet |
|
|
||||||||||||
