Product Summary

The MPZ2012S300AT is a ferrite bead. The applications of the MPZ2012S300AT are: Noise elimination of DC power supply lines for USB interface circuitry, personal computers, electronic games, hard disk drives, and other general electronic equipment. Also effective as a noise countermeasure in signal lines.

Parametrics

MPZ2012S300AT absolute maximum ratings: (1)MPZ2012S300AT; (2)Impedance: 20 to 30Ω; (3)DC resistance: 0.01Ω; (4)Rated current: 5A.

Features

MPZ2012S300AT features: (1)The MPZ series are multilayer chip impeders for power supply line applications; (2)High miniaturized, these parts nonetheless exhibit low DC resistance and high current handling capability; (3)The products contain no lead and also support lead-free soldering.

Diagrams

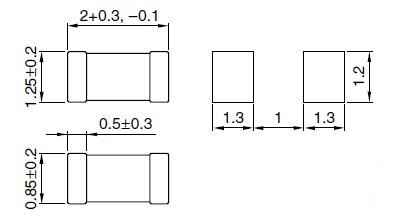

MPZ2012S300AT package diagram
