Product Summary
The RC0603FR-0742K2L is a thick film chip resistor with lead-free terminations made by thick film process. It is designed for general purpose applications, laptop and notebook computer, memory module, digital camera and telecommunication equipment, etc.
Parametrics
RC0603FR-0742K2L characteristics: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 50 V; (3)Maximum Overload Voltage: 100 V; (4)Dielectric Withstanding Voltage: 100 V; (5)Resistance Range: 5% (E24) 1 Ω to 22 MΩ; 1% (E96) 1 Ω to 10 MΩ; Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: 10 Ω < R ≤ 10 MΩ ±100 ppm/℃; R ≤ 10 Ω; R > 10 MΩ ±200 ppm/℃; (7)Jumper Criteria: Rated Current 1.0 A; Maximum Current 2.0 A.
Features
RC0603FR-0742K2L features: (1)Small and light weight; (2)Excellent heat resistance and moisture resistance; (3)Suitable size and packaging for surface mount assembly; (4)RoHS Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

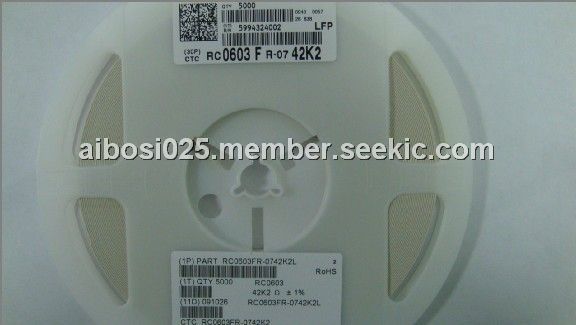

 RC0603FR-0742K2L |
Yageo |
Thick Film Resistors - SMD 42.2K OHM 1% |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
 |
RC0603BR0715K |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
RC0603FR-070RL |
Yageo |
Thick Film Resistors - SMD 0.0ohm 1% |
Data Sheet |
|
|
||||||||||||||
|
RC0603FR07100K |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
RC0603FR-07100KL |
Yageo |
Thick Film Resistors - SMD 100K OHM 1% |
Data Sheet |
|
|
||||||||||||||
|
RC0603FR07100R |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
|
RC0603FR-07100RL |
Yageo |
Thick Film Resistors - SMD 100 OHM 1% |
Data Sheet |
|
|
||||||||||||||
