Product Summary
The TEESVA1E225M8R tantulum capacitors offer the designer advanced technological design and excellent performance characteristics for filtering, bypassing, coupling, decoupling, blocking, and R C timing circuits. They are used extensively in industrial, commercial, entertainment, and medical electronic equipment. The TEESVA1E225M8R tantalum capacitors are inherently very reliable and there is significant evidence that this reliability improves with age-perhaps indefinitely. Capacitance loss with age and other problems often associated with liquid electrolytes are nonexistent in solid electrolyte tantalums.
Parametrics
TEESVA1E225M8R performance characteristics: (1)Operating temperature: -55℃ to +125℃; (2)Rated voltage (V.dc): 2.5v, 4v, 6.3v, 10v, 16v, 20v, 25v, 35v at 85℃; (3)Derated voltage (V.dc): 1.6v, 2.5v, 4v, 6.3v, 10v, 13v, 16v, 22v at 125℃; (4)Surge voltage (V.dc): 3.3v, 5.2v, 8v, 13v, 20v, 26v, 33v, 46v at 85℃; (5)Capacitance: 0.47 μF to 680 μF at 120HZ; (6)Capacitance tolerance: ±20% or ±10%(P,J case: ±20%) at 120HZ; (7)DC Leakage Current (L.C): 0.01C. V(μA) or 0.5 μA , whichever is greater ; (8)Dissipation Factor: Refer to Standard Ratings at 120HZ; (9)Equivalent Series Resistance:Refer to Standard Ratings at 100HZ.
Features
TEESVA1E225M8R features: (1)lead-free type. inconformity to RoHS; (2)offer a range of small, high capacity models; (3)succeed to the latest technology plus outstanding performance.

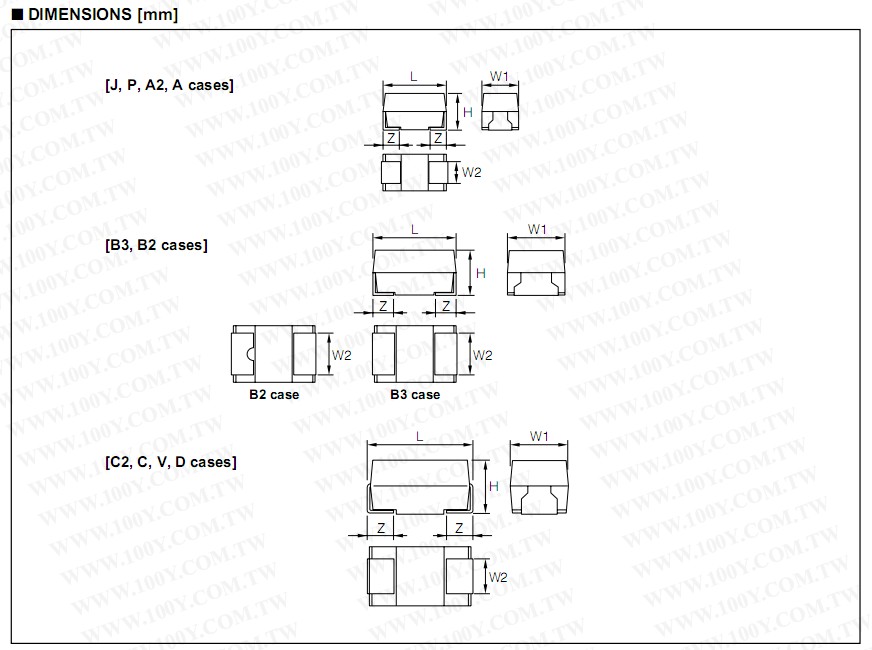

Diagrams
