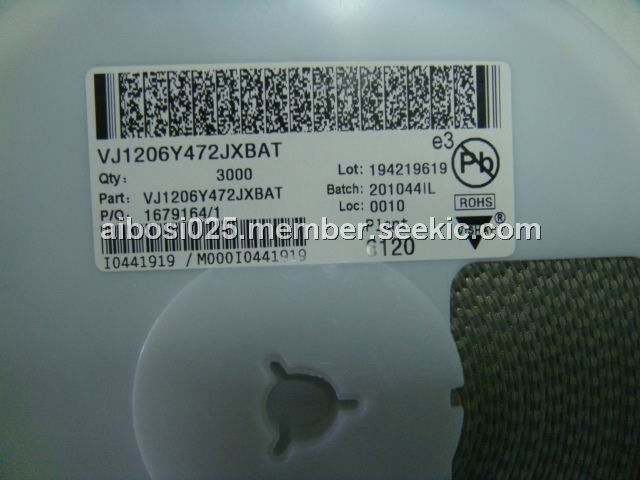

VJ1206Y472JXBAT

VISHAY, SMD, multilayer ceramic chip capacitor, 4700PF, 1206, 75V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: VJ1206Y472JXBAT

Brand:: Vishay Siliconix - Vishay | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Mable's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:VJ1206Y472JXBAT
US $0.10 - 100.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The VJ1206Y472JXBAT is a surface mount multilayer ceramic chip capacitor solution for boardflex sensitive applications.

Parametrics

VJ1206Y472JXBAT electrical specifications: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 100 pF to 1.8 μF; (3)Voltage Rating: 16 Vdc to 3000 Vdc; (4)Temperature Coefficient of Capacitance (TCC): X7R: ± 15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (5)Dissipation Factor: 6.3 V, 10 V ratings: 5 % max. at 1.0 Vrms and 1 kHz; 16 V, 25 V ratings: 3.5 % max. at 1.0 Vrms and 1 kHz; s 50 V ratings: 2.5 % max. at 1.0 Vrms and 1 kHz; (6)Aging Rate: 1 % maximum per decade; (7)Insulation Resistance (IR): At + 25 ℃ and rated voltage 100 000 MW minimum or 1000 WF, whichever is less; At + 125 ℃ and rated voltage 10 000 MW minimum or 100 WF, whichever is less; (8)Dielectric Withstanding Voltage (DWV): ≤ 250 Vdc: DWV at 250 % of rated voltage; 500 Vdc: DWV at 200 % of rated voltage; 630 Vdc: DWV at 150 % of rated voltage; 1000 Vdc: DWV at 150 % of rated voltage; 1500 Vdc: DWV at 120 % of rated voltage; 2000 Vdc: DWV at 120 % of rated voltage; 3000 Vdc: DWV at 120 % of rated voltage.

Features

VJ1206Y472JXBAT features: (1)Surface mountable, precious metal technology, wet build process; (2)OMD-Cap (Open Mode Design) reduce the risk of short or low IR because of board flex cracks; (3)Efficient low-power consumption, ripple current capaple to 1.2 Arms at 100 kHz; (4)High Voltage breakdown compared to standard design; (5)Available with 100 % voltage condition, process code “5H”; (6)Excellent reliability and thermal shock performance; (7)Available with polymer termination for increase resistance to board flex cracking; (8)Protective surface coating of high voltage capacitors maybe required to prevent surface arcing.
