Product Summary

The MMZ2012R150AT is a EMC component.

Parametrics

MMZ2012R150AT absolute maximum ratings: (1)Impedance: 15 Ohms; (2)Maximum DC Current: 1500 mAmps; (3)Maximum DC Resistance: 0.05 Ohms; (4)Tolerance: 25 %; (5)Operating Temperature Range: - 55 C to + 125 C; (6)Dimensions: 1.25 mm W x 2 mm L x 0.85 mm H; (7)Package / Case: 0805 (2012 metric); (8)Packaging: Reel; (9)Product: Chip Ferrite Beads; (10)Series: MMZ; (11)Standard Pack Qty: 4000.0; (12)Termination Style: SMD/SMT; (13)Part # Aliases: MMZ2012R150A.

Features

MMZ2012R150AT features: (1)Chip bead(impeder), MMZ series offers 4 construction materials; (2)Size standardized for use by automatic assembly equipment. No preferred orientation.; (3)Either flow or reflow soldering methods can be used due to electroplating of the terminal electrodes.; (4)High reliability due to an entirely monolithic structure.; (5)Closed magnetic circuit structure allows high-density installation while preventing crosstalk between circuits.

Diagrams

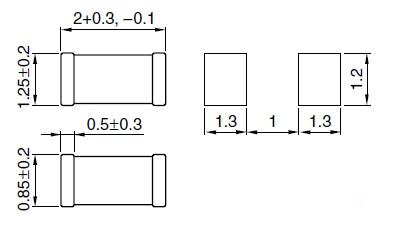

MMZ2012R150AT package diagram

MMZ2012
MMZ2012
