Product Summary
The 1N4004 is the axial lead standard recovery rectifier which is used for general-purpose low-power applications.
Parametrics
1N4004 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 400V; (2)Working Peak Reverse Voltage: 400V; (3)DC Blocking Voltage: 400V; (4)Non-Repetitive Peak Reverse Voltage: 480V; (5)RMS Reverse Voltage: 280V; (6)Average Rectified Forward Current (single phase, resistive load,; (7)60 Hz, TA = 75℃): 1.0A; (8)Non-Repetitive Peak Surge Current (surge applied at rated load conditions): 30A; (9)Operating and Storage Junction Temperature Range: -65 to +175℃.
Features
1N4004 features: (1)Shipped in plastic bags, 1000 per bag; (2)Available Tape and Reeled, 5000 per reel, by adding a RL suffix to the part number; (3)Available in Fan-Fold Packaging, 3000 per box, by adding a FF; (4)suffix to the part number; (5)These devices are manufactured with a Pb-Free external lead finish only.

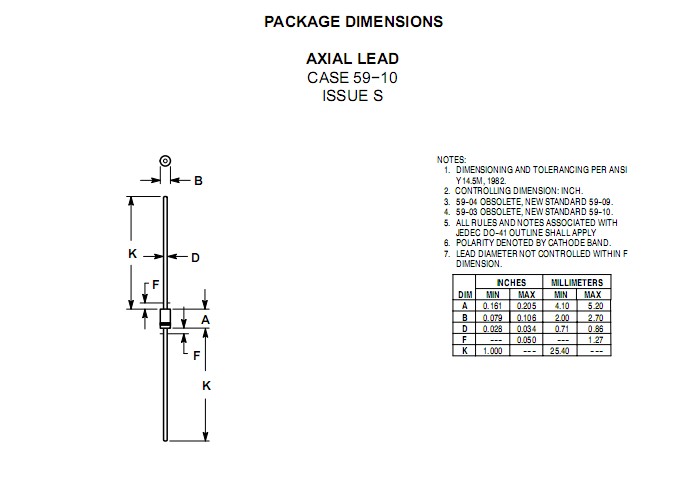

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1N4004 |
Fairchild Semiconductor |
Rectifiers Vr/400V Io/1A T/R |
Data Sheet |
|
|
||||||||||||
 |
1N4004/1 |
Vishay Semiconductors |
Rectifiers Vr/400V Io/1A BULK |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N4004/4 |
Vishay Semiconductors |
Rectifiers Vr/400V Io/1A T/R |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4004/54 |
|
RECTIFIER 1 AMP 400V DO-41 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4004/L |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4004_NL |
|
DIODE GP 400V 1A RECT DO41 |
Data Sheet |
Negotiable |
|
||||||||||||
|
1N4004A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
1N4004AT-82 |
ROHM Semiconductor |
Rectifiers DI RECT. 400V 26mm |
Data Sheet |
|
|
||||||||||||
