Product Summary

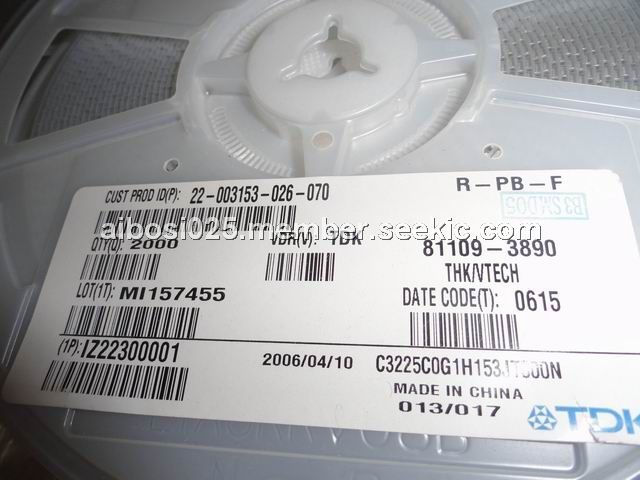

The C3225C0G1H153JT000N is a ceramic capacitor for mid voltage SMD. The applications of the C3225C0G1H153JT000N are: Snapper circuits for switching power supply, ringer circuits for telephone and modem, or other general high voltage circuits.

Parametrics

C3225C0G1H153JT000N absolute maximum ratings: (1)Temperature characteristics: C0G; (2)Capacitance change: 0±30ppm/℃; (3)Temperature range: –55 to +125℃.

Features

C3225C0G1H153JT000N features: (1)The unique design structure for mid voltage enables a compact size with high voltage resistance; (2)Rated voltage Edc: 100, 250 and 630V; (3)C3225, C4532 and C5750 types are specific to reflow soldering.

Diagrams

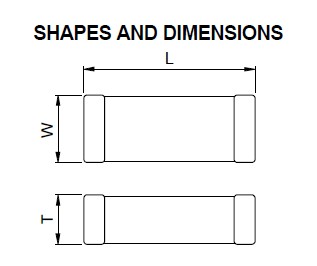

C3225C0G1H153JT000N shapes and dimensions
