Product Summary

The DLP11SA350HL2L is a film type common mode choke coil.

Parametrics

DLP11SA350HL2L absolute maximum ratings: (1)DLP11SA350HL2L Common Mode Impedance(at 100MHz/20℃): 35ohm±20%; (2)Rated Current: 170mA; (3)Rated Voltage: 5Vdc; (4)Insulation Resistance (min.): 100M ohm; (5)Withstand Voltage: 12.5Vdc; (6)DC Resistance: 0.9ohm±25%.

Diagrams

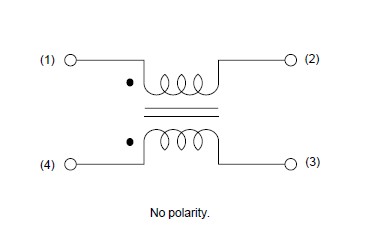

DLP11SA350HL2L Equivalent Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

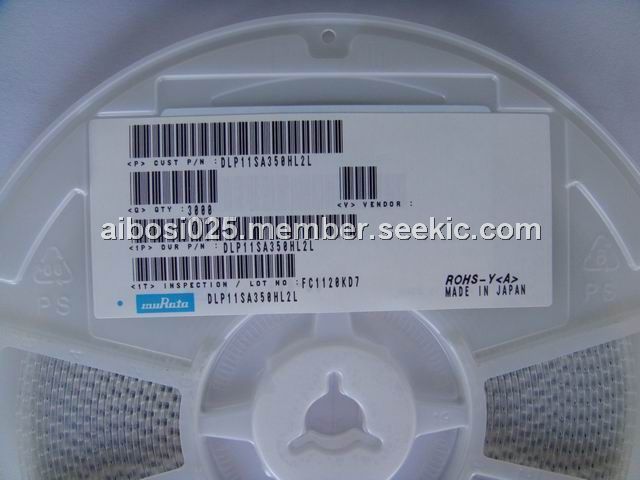

DLP11SA350HL2L
DLP11SA350HL2L
Murata
Common Mode Inductors (Chokes) 35Ohm 20% 100MHz
Data Sheet
0-1: $0.29
1-50: $0.26
50-100: $0.24
100-500: $0.19
