Product Summary

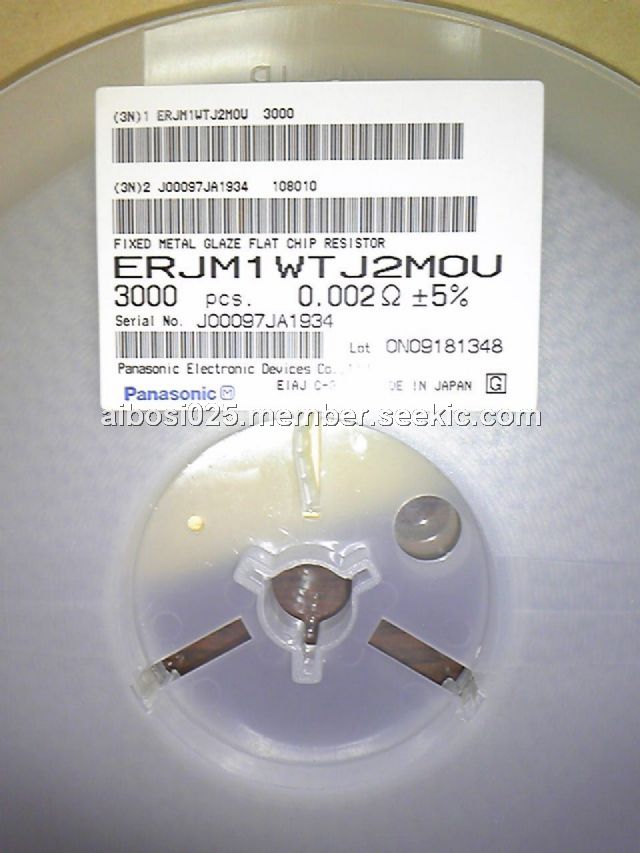

ERJM1WTJ2M0U is the SMD Panasonic Semiconductor.

Parametrics

ERJM1WTJ2M0U absolute maximum ratings: (1)Power Rating at 70 ℃ (W): 1W; (2)Standard Resistance (mΩ): 2. 3. 4; (3)Resistance Tolerance (%): F: ±1, J: ±5; (4)Category Temperature Range (℃): -55 to +170℃.

Features

ERJM1WTJ2M0U features: (1)Low resistance values and high precision(1 mΩ to 20 mΩ); (2)Stable resistance not influenced by measurement position; (3)High heat emission; (4)Low profile, strong body; (5)Inductance less than 1.0 nH for the metal plate structure; (6)ROHS compliant.

Diagrams

ERJM1WTJ2M0U dimensions
