Product Summary

The EZA-CT31AAAJ is a chip resistor.

Parametrics

EZA-CT31AAAJ absolute maximum ratings: (1)Resistance In Ohms: 100; (2)Capacitance: 22pF; (3)Power (Watts): 0.03W, 1/32W; (4)Tolerance Resistance ±5%, Capacitance +30%, -20%; (5)Package / Case 2.0mm x 1.25mm x 0.5mm; (6)Packaging: Cut Tape (CT); (7)Series: EZA-CT; (8)Lead Free Status: Lead Free; (9)RoHS Status: RoHS Compliant.

Features

EZA-CT31AAAJ features: (1)4 popular noise reduction circuits made; (2)Take up less space than discrete chip resistor and chip capacitor.

Diagrams

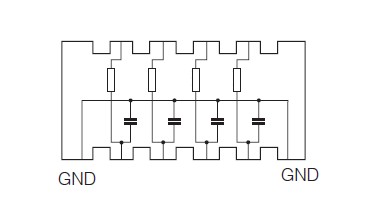

EZA-CT31AAAJ chip RC networks

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EZA-CT31AAAJ
EZA-CT31AAAJ
Panasonic Electronic Components
Resistor Networks & Arrays Resistor-Cap Network Chip 4 RC's 0805
Data Sheet
0-3000: $0.16
3000-5000: $0.12
5000-10000: $0.12
