Product Summary
The VJ1206A470JXBAT is a surface mount multilayer ceramic chip capacitor for boardflex sensitive applications. It is widely applied in timing and tuning circuits, sensor and scanner applications, decoupling and filtering, surge suppression.
Parametrics
VJ1206A470JXBAT electrical specifications: (1)Operating Temperature: - 55 ℃ to + 150 ℃(above + 125 ℃ changed characteristics); (2)Capacitance Range: 1 pF to 56 nF; (3)Voltage Range: 25 VDC to 1000 VDC; (4)Temperature Coefficient of Capacitance (TCC):0 ppm/℃ ± 30 ppm/℃ from - 55 ℃ to + 125 ℃; (5)Dissipation Factor (DF): 0.1 % maximum at 1.0 VRMS and 1 MHz for values ≤1000 pF; 0.1 % maximum at 1.0 VRMS and 1 kHz for values > 1000 pF; (6)Insulating Resistance: At + 25 ℃ 100 000 MΩ min. or 1000ΩF whichever is less; At + 125 ℃ 10 000 MΩ min. or 100ΩF whichever is less; (7)Aging Rate: 0 % maximum per decade; (8)Dielectric Strength Test: Performed per method 103 of EIA 198-2-E; (9)Applied test voltages: ≤200 VDC-rated: 250 % of rated voltage; 500 VDC-rated: 200 % of rated voltage; 630 VDC,1000 VDC-rated: 150 % of rated voltage.
Features
VJ1206A470JXBAT features: (1)C0G (NP0) and X7R/X5R dielectrics offered; (2)C0G (NP0) is an ultra-stable dielectric offering a very low Temperature Coefficient of Capacitance (TCC); (3)C0G (NP0) offers low dissipation; (4)Excellent aging characteristics; (5)Ideal for decoupling and filtering (X7R); (6)Ideal for surge suppression and high voltage applications; (7)Wide range of case sizes, voltage ratings and capacitance values; (8)Wet build process; (9)Reliable Noble Metal Electrode (NME) system; (10)Compliant to RoHS Directive 2002/95/EC; (11)Halogen-free according to IEC 61249-2-21 definition.

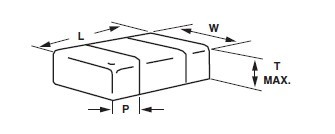

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

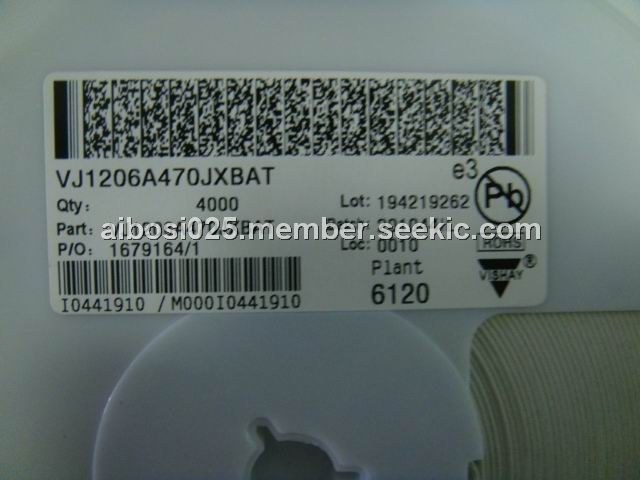

 VJ1206A470JXBAT |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 47pF 100volts 5% |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
VJ1206 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
VJ1206A100FXAAC |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 10pF 50volts C0G 1% |
Data Sheet |
|
|
||||||||||||
|
VJ1206A100FXAAT |
Vishay/Vitramon |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1206 10pF 50volts C0G 1% |
Data Sheet |
Negotiable |
|
||||||||||||
|
