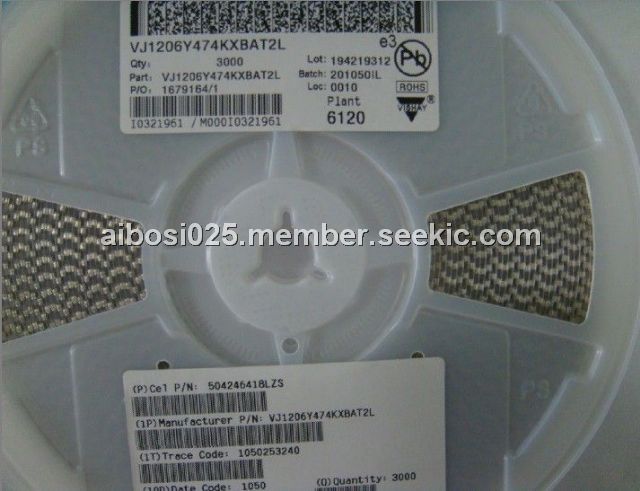

VJ1206Y474KXBAT2L

Surface Mount, Multilayer Ceramic Chip Capacitor, 470NF, +-10%, 100V, XR7, 1206

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: VJ1206Y474KXBAT2L

Brand:: Vishay Siliconix - Vishay | Pack: SMD | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Mable's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-12

From Other Seller

Part Number:VJ1206Y474KXBAT2L
US $0.10 - 100.00
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The VJ1206Y474KXBAT2L is a surface mount multilayer ceramic chip capacitor for power supply applications.

Parametrics

VJ1206Y474KXBAT2L electrical specifications: (1)Operating Temperature: - 55 ℃ to + 125 ℃; (2)Capacitance Range: 1000 pF to 1.8 μF; (3)Voltage Rating: 50 Vdc to 630 Vdc; (4)Temperature Coefficient of Capacitance (TCC): X7R: ± 15 % from - 55 ℃ to + 125 ℃, with 0 Vdc applied; (5)Aging Rate: 1 % maximum per decade; (6)Insulation Resistance (IR): At + 25 ℃ and rated voltage 100 000 MΩ minimum or 1000 ΩF, whichever is less; (7)Dielectric Withstanding Voltage (DWV): This is the maximum voltage the capacitors are tested for a 1 to 5 second period and the charge/discharge current does; (8)not exceed 50 mA: ≤ 250 Vdc: DWV at 250 % of rated voltage; 500 Vdc: DWV at 200 % of rated voltage; 630 Vdc: DWV at 150 % of rated voltage.

Features

VJ1206Y474KXBAT2L features: (1)Rugged, surface-mountable, multilayer ceramic capacitors, made with Advanced X7R dielectric; (2)Efficient low-power consumption, ripple current capable to 1.2 Arms at 100 kHz; (3)High voltage breakdown compared to standard design; (4)Excellent reliability and thermal shock performance; (5)Surface mount, precious metal technology, wet build process.
