Product Summary

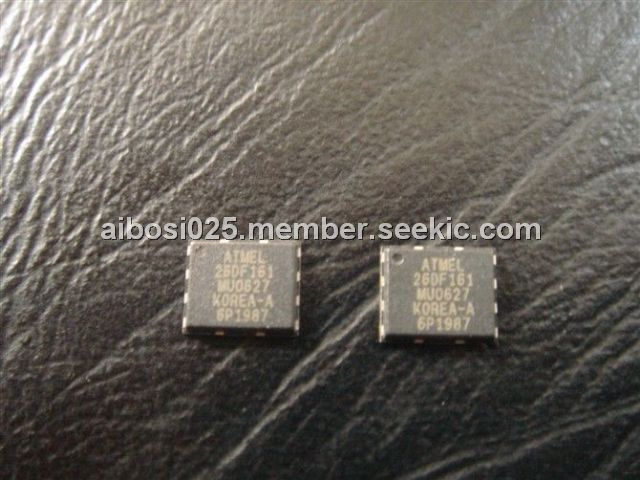

The AT26DF161-MU is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the AT26DF161-SU, with its erase granularity as small as 4-Kbytes, makes it ideal for data storage as well, eliminating the need for additional data storage EEPROM devices. The AT26DF161-MU supports read, program, and erase operations with a supply voltage range of 2.7V to 3.6V.
Parametrics
AT26DF161-MU absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +4.1V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.5V.
Features
AT26DF161-MU features: (1)Single 2.7V - 3.6V Supply; (2)Serial Peripheral Interface (SPI) Compatible: Supports SPI Modes 0 and 3; (3)66 MHz Maximum Clock Frequency; (4)Individual Sector Protection with Global Protect/Unprotect Feature: Sixteen 128-Kbyte Physical Sectors; (5)Hardware Controlled Locking of Protected Sectors; (6)Flexible Programming: Byte/Page Program (1 to 256 Bytes); (7)Automatic Checking and Reporting of Erase/Program Failures; (8)JEDEC Standard Manufacturer and Device ID Read Methodology; (9)Low Power Dissipation; (10)Endurance: 100,000 Program/Erase Cycles; (11)Data Retention: 20 Years; (12)Complies with Full Industrial Temperature Range; (13)Industry Standard Green (Pb/Halide-free/RoHS Compliant) Package Options; (14)8-lead SOIC (200-mil wide).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT26DF161-MU |
Atmel |
Flash 16M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
AT26DF081A-SSU |
Atmel |
Flash 8M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF161-MU |
Atmel |
Flash 16M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26F004-SU |
Atmel |
Flash 4M 8 I/O Pins SPI 256B 2.7V-3.6V |
Data Sheet |
Negotiable |
|
||||
|
AT26F004-SSU |
Atmel |
Flash 4M 8 I/O Pins SPI 256B 2.7V-3.6V |
Data Sheet |
Negotiable |
|
||||
|
AT26F004-MU |
Atmel |
Flash 4M SERIAL FLASH IND TEMP |
Data Sheet |
Negotiable |
|
||||
|
AT26DF321-SU |
Atmel |
Flash 32M SERIAL FLASH - IND TEMP |
Data Sheet |
Negotiable |
|
||||
