Product Summary
The CF739E is the GaAs FET (N-channel dual-gate GaAs MES FET).
Parametrics
CF739E absolute maximum ratings: (1)Drain-source voltage: 10 V; (2)Drain current: 80 mA; (3)Gate 1-source voltage: 6 V; (4)Gate 2-source voltage: 6 V; (5)Channel temperature: 150 ℃; (6)Total power dissipation, TS ≤ 66 ℃): 240 mW; (7)Storage temperature range: – 55 to + 150℃; (8)Gate 1-source peak current: 1 mA; (9)Gate 2-source peak current: 1 mA.
Features
CF739E features: (1)N-channel dual-gate GaAs MES FET; (2)Depletion mode transistor for tuned small-signal applications up to 2 GHz, e. g. VHF, UHF,Sat-TV tuners; (3)Low noise; (4)High gain; (5)Low input capacitance.

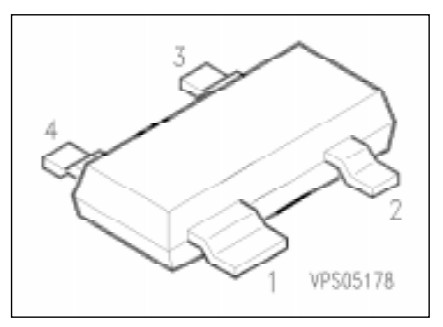

Diagrams
 |
 CF739 |
