Product Summary

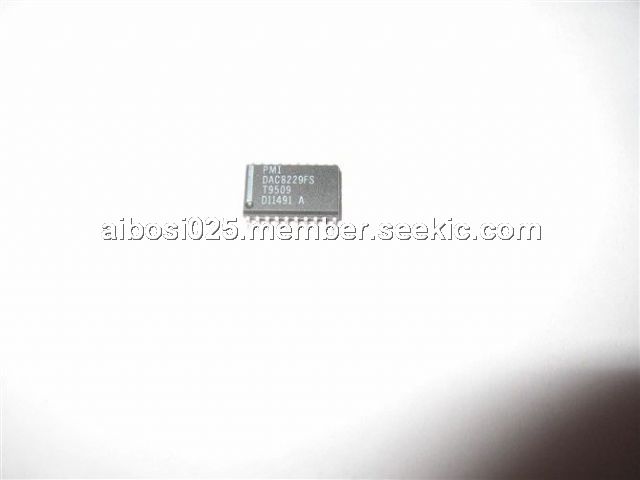

The dac8229fs is a dual 8-bit, voltage output, multiplying CMOS D/A converter. Its reference input accepts a ±2.5V signal, inverts and delivers it to the output with an internal amplifier. The dac8229fs also accepts -10 V at VREF with a corresponding +10 V output( the maximum positive input signal that it can accept is + 2.5V).
Parametrics
dac8229fs absolute maximum ratings: (1)VDD to AGND or DGND: -0.3 to +17V; (2)VVSS to AGND or DGND: -7 V to VDD; (3)VDD to VSS: -0.3 V to +24V; (4)AGND to DGND: -0.3 V to VDD; (5)Digital input voltage to GND: -0.3 V to VDD; (6)Operating temperature: -40 to +85℃; (7)Junction temperature: +150℃; (8)Storage temperature: -65 to +150℃; (9)Lead temperature: +300℃.
Features
dac8229fs features: (1)Two 8-bit DACs in a single chip; (2)Adjustment-free internals CMOS amplifiers; (3)Single or dual supply operation; (4)TTL compatible over full VDD range; (5)5 Microsecond setting time; (6)Fast interface timing: tWR=50 ns; (7)Improved resistance to ESD; (8)Fits AD/PM-7528 and AD/PM-7628 sockets; (9)Available in small outline package; (10)-40 ℃ to +85 ℃for the EXtended industrial temperature range; (11)Available in Die form.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC8229FS |
Analog Devices Inc |
IC DAC 8BIT DUAL V-OUT 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||
|
DAC8229FS-REEL |
Analog Devices Inc |
IC DAC 8BIT DUAL V-OUT 20-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
DAC8229FSZ |
|
IC DAC 8BIT DUAL V-OUT 20SOIC |
Data Sheet |
|
|
||||||||||||||||
|
DAC8229FSZ-REEL |
|
IC DAC 8BIT DUAL V-OUT 20SOIC |
Data Sheet |
|
|
||||||||||||||||
