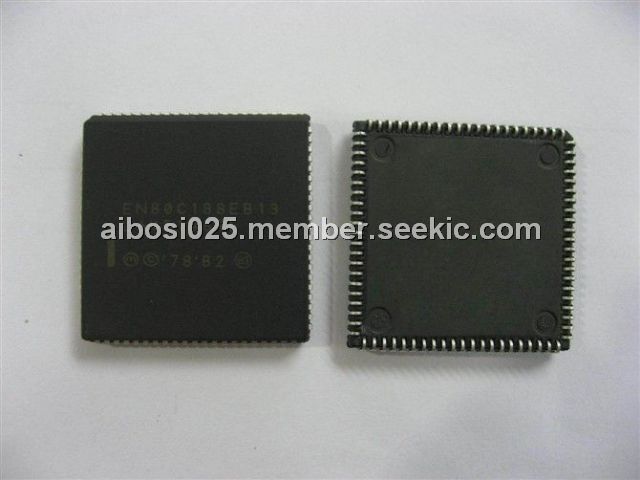

EN80C188EB13

low-power, high-integration microprocessor, 84PLCC, -0.5V to 6.5V, Two Independent UARTs, Programmable Interrupt Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: EN80C188EB13

Brand:: Intel Corporation - Intel | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Mable's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:EN80C188EB13
US $0.10 - 100.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The EN80C188EB13 is the first product in a new generation of low-power, high-integration microprocessor. The feature set of the EN80C188EB13 meets the needs of low power, space critical applications. Low-Powe applications benefit from the static design of the CPU core and the integrated peripherals as well as low voltage operation. Minimum current consumption is achieved by providing a Powerdown mode that halts operation of the EN80C188EB13, and freezes the clock circuits. Peripheral design enhancements ensure that non-initialized peripherals consume little current.

Parametrics

EN80C188EB13 absolute maximum ratings: (1)Storage Temperature: -65 to 150℃; (2)Case Temp under Bias: -65 to 120℃; (3)Supply Voltage with Respect to VSS: -0.5V to 6.5V; (4)Voltage on other Pins with Respect to VSS: -0.5V to VCC + 0.5V.

Features

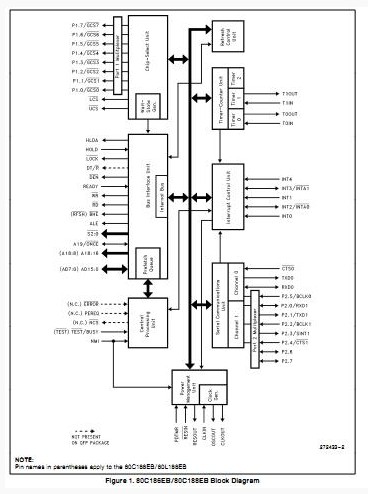

EN80C188EB13 features: (1)Low-Power Static CPU Core; (2)Two Independent UARTs each with an Integral Baud Rate Generator; (3)Two 8-Bit Multiplexed I/ O Ports; (4)Programmable Interrupt Controller; (5)Three Programmable 16-Bit Timer/Counters; (6)Clock Generator; (7)Ten Programmable Chip Selects with Integral Wait-State Generator; (8)Memory Refresh Control Unit; (9)System Level Testing Support (ONCE Mode).
