Product Summary

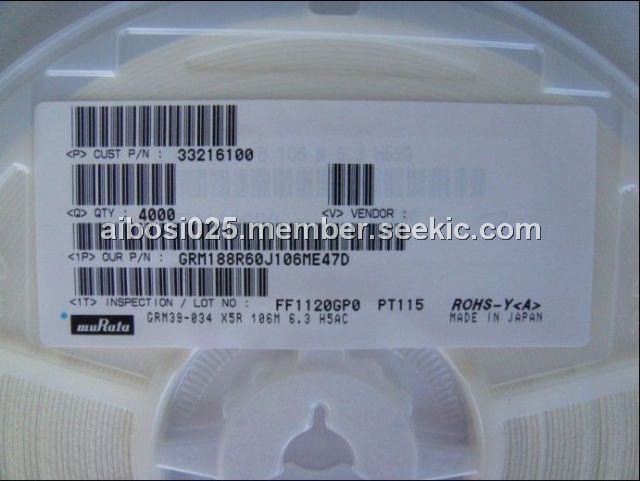

The GRM188R60J106ME47D is a chip monolithic ceramic capacitor. The GRM188R60J106ME47D is ideal for use on high frequency pulse circuits such as snubber circuits for switching power supplies, DC-DC converters, ballasts (inverter fluorescent lamps), etc.
Parametrics
GRM188R60J106ME47D absolute maximum ratings: (1)Operating Temperature Range: –55 to +125℃; (2)Insulation Resistance: CU0.01μF: More than 100M μF; (3)(I.R.)CF0.01μF: More than 10,000M; (4)Capacitance: Within the specified tolerance; (5)Capacitance Temperature Characteristics: Cap. Change Within ±15%(Temp. Range: –55 to +125℃).
Features
GRM188R60J106ME47D features: (1)Low-loss and suitable for high frequency circuits; (2)Muratas original internal electrode structure provides high flash-over voltage; (3)A new monolithic structure for small, surfacemountable devices capable of operating at high voltage levels; (4)Sn-plated external electrodes provides good solderability; (5)Use the GRM21/31 type with flow or reflow soldering, and other types with reflow soldering only.

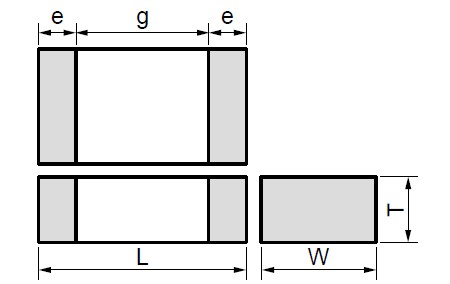

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GRM188R60J106ME47D |
Murata |
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 0603 10uF 6.3volts X5R 20% |
Data Sheet |
|
|
||||||||||||
