Product Summary

The 4N33-X009T is the optically coupled isolator with a gallium arsenide infrared LED and a solicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. The 4N33-X009T can be used to replace reed and mercury relays with advantages of long life, high speed switching and elimination of magnetic fields.

Parametrics

4N33-X009T absolute maximum ratings: (1)Peak reverse voltage: 3.0 V; (2)Forward continuous current: 60 mA; (3)Power dissipation: 100 mW; (4)Derate linearly from 55 ℃: 1.33 mW/℃.

Features

4N33-X009T features: (1)Very high current transfer ratio, 500 % Min.; (2)High isolation resistance, 10Ω Typical; (3)Standard plastic DIP package; (4)Lead-free component; (5)Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC.

Diagrams

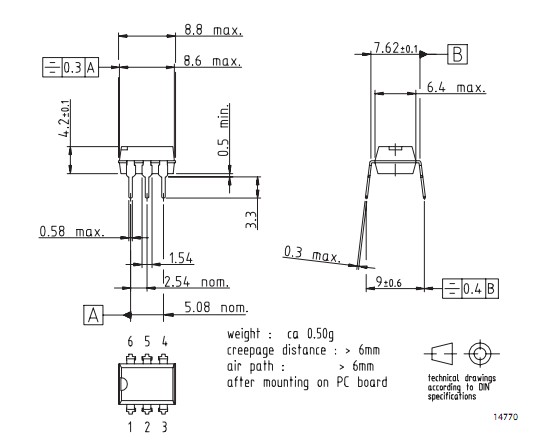

4N33-X009T package dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
4N33-X009T
4N33-X009T
Vishay Semiconductors
Transistor Output Optocouplers Phototransistor Out Single CTR>500%
Data Sheet
0-1: $0.26
1-10: $0.23
10-100: $0.21
100-250: $0.19
