Product Summary

The AVX TransGuard Transient Voltage Suppressor (TVS) VC080505A150DP with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. Monolithic multilayer construction provides protection from voltage transients caused by ESD, lightning, NEMP, inductive switching, etc. True surface mount product is provided in EIA industry standard packages. Thru-hole components are supplied as conformally coated axial devices. The VC080505A150DP is a zinc oxide (ZnO) based ceramic semiconductor device with non-linear voltage-current characteristics (bi-directional) similar to back-to-back zener diodes. The VC080505A150DP has the added advantage of greater current and energy handling capabilities as well as EMI/RFI attenuation.

Parametrics

VC080505A150DP specifications: (1)Manufacturer: AVX; (2)Product Category: Varistors; (3)RoHS: Details; (4)Product: MLV; (5)Voltage Rating DC: 5.6 V; (6)Voltage Rating AC: 4 V; (7)Clamping Voltage: 18 V; (8)Peak Surge Current: 40 A; (9)Surge Energy Rating: 0.1 J; (10)Capacitance: 1100 pF; (11)Operating Temperature Range: - 55℃ to + 125℃; (12)Mounting: SMD/SMT; (13)Packaging: reel; (14)Dimensions: 1.25 mm W x 2 mm L x 1.02 mm H; (15)Package / Case: 0805 (2012 metric) ; (16)Series: Transguard; (17)Factory Pack Quantity:1000.0; (18)Termination Style: SMD/SMT.

Diagrams

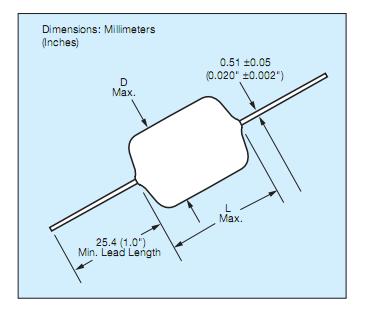

VC080505A150DP package dimensions
