Product Summary

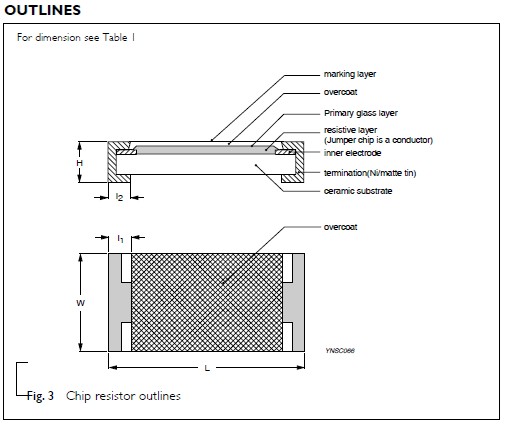

The RC0805FR-0710R resistor is constructed on top of a high-grade ceramic body. Internal metal electrodes are added on each end to make the contacts to the thick film resistive element. The composition of the resistive element is a noble metal imbedded into a glass and covered by a second glass to prevent environment influences. The resistor RC0805FR-0710R is laser trimmed to the rated resistance value. The resistor RC0805FR-0710R is covered with a protective epoxy coat, finally the two external terminations (matte tin on Nibarrier) are added.
Parametrics
RC0805FR-0710R electrical characteristics: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 150 V; (3)Maximum Overload Voltage: 300 V; (4)Dielectric Withstanding Voltage: 300 V; (5)Resistance Range: 1 Ω to 22 MΩ at 5% (E24); 1 Ω to 10 MΩ at 1% (E24/E96); Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: ±200 ppm/℃ at 1 Ω ≤ R ≤ 10 Ω; ±200 ppm/℃ at 10 MΩ < R ≤ 22 MΩ; ±100 ppm/℃ at 10 Ω < R ≤ 10 MΩ; (7)Jumper Criteria: Rated Current: 2 A; Maximum Current: 5 A.
Features
RC0805FR-0710R features: (1)Halogen Free Epoxy; (2)RoHS compliant: Products with lead free terminations meet RoHS requirements; Pb-glass contained in electrodes, resistor element and glass are exempted by RoHS; (3)Reducing environmentally hazardous wastes; (4)High component and equipment reliability; (5)Saving of PCB space; (6)None forbidden-materials used in products/production.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC0805FR-0710RL |
Yageo |
Thick Film Resistors - SMD 10 OHM 1% |
Data Sheet |
|
|
||||||||||||||
|
RC0805FR-0710R7L |
Yageo |
Thick Film Resistors - SMD 10.7 OHM 1% |
Data Sheet |
|
|
||||||||||||||
|
RC0805FR-0710R5L |
Yageo |
Thick Film Resistors - SMD 10.5 OHM 1% |
Data Sheet |
|
|
||||||||||||||
|
RC0805FR-0710R2L |
Yageo |
Thick Film Resistors - SMD 10.2 OHM 1% |
Data Sheet |
|
|
||||||||||||||
